Incoloy 800 Pipe

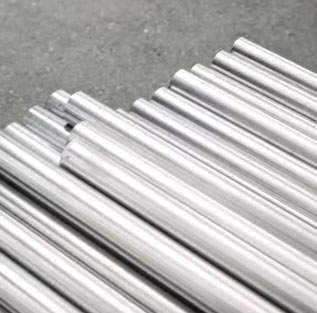

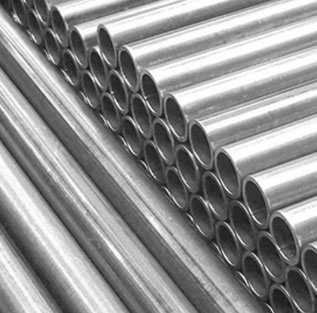

Incoloy 800 Seamless and Welded Pipe

Inconel Alloy 800H/ 800HT UNS N08800 Seamless Pipe supplier in Mumbai, India

Incoloy 800 Pipe Specification

Specifications

ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517

Incoloy 800 Seamless Pipe size

4 to 219mm W. T.: 0.5 to 20mm

Incoloy 800 Welded Pipe size

5.0 mm – 1219.2 mm

Incoloy 800 EFW Pipe size

5.0 mm – 1219.2 mm

Specialized in

Large Diameter Size

Alloy 800 Pipe Schedule

SCH5, SCH10, SCH40, STD, SCH80, SCH160

Incoloy Alloy 800 Pipe Finish

Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF

Incoloy 800 Pipe Form

Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc.

Alloy 800 Pipe Length

Single Random, Double Random & Cut Length.

End

Plain End, Beveled End, Treaded.

Marking

All Incoloy Alloy 800 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)

Material Test Certificates (MTC)

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2

Manufacturers of Incoloy 800 Pipe

Sumitomo Metals, Japan
Tubacex Tubos Inoxidables S.A., SpainNippon Steel Corporation, Japan
Seah Steel Corporation, Korea
Schoeller Bleckmann, Austria
Kobe Special Tube, Japan
Sanyo Special Steel, Japan

We can also cut, thread, and groove Incoloy 800 Pipes to meet your specifications.

Incoloy 800 / 800H / 800HT Pipe, Seamless and Welded Stock List

Alloy	Product form	Dimension
INCOLOY 800 (32 Ni/21 Cr)	cold drawn, pickled, annealed	13.72 x 2.24 mm (¼”nb sch40s)
INCOLOY 800HT (32 Ni/21 Cr)	seamless, cold finished, solution annealed	26.67 x 3.91 mm (¾”nb sch80s)
INCOLOY 800HT (32 Ni/21 Cr)	cold drawn, pickled, solution annealed	33.40 x 3.38 mm (1″nb sch40s)
ALLOY 800HT (32 Ni/21 Cr)	seamless, cold finished, annealed	33.40 x 4.55 mm (1″nb sch80s)
ALLOY 800HT (32 Ni/21 Cr)	seamless, cold finished, annealed	48.26 x 3.68 mm (1½”nb Sch40s)
INCOLOY 800 (32 Ni/21 Cr)	cold drawn, pickled, annealed	50.8 x 2.64 mm
INCOLOY 800HT (32 Ni/21 Cr)	cold drawn, pickled, solution annealed	60.33 x 3.91 mm (2″nb sch40s)
INCOLOY 800HT (32 Ni/21 Cr)	cold drawn, pickled, solution annealed	60.33 x 2.77 mm (2″nb Sch10s)
INCOLOY 800HT (32 Ni/21 Cr)	cold drawn, pickled, solution annealed	60.33 x 3.91 mm (2″nb sch40s)
INCOLOY 800HT (32 Ni/21 Cr)	cold drawn, pickled, solution annealed	88.90 x 5.49 mm (3″nb sch40s)
ALLOY 800HT (32 Ni/21 Cr)	seamless, hot finished, pickled, passivated	114.3 x 6.02 mm (4″nb sch40s)

Alloy 800 Seamless Pipe

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters
Incoloy 800 Seamless Pipe (Custom Sizes)	5.0mm ~ 203.2mm	As per requirement	Upto 6 Meters

1.4876 Incoloy Welded Pipe

Types	Out diameter	Wall thickness	Length
Incoloy 800 Welded Pipe (in Stock + Custom Sizes)	5.0mm ~ 1219.2mm	1.0 ~ 15.0 mm	Upto 6 Meters

ASTM Product Specifications

Specification	Title
ASTM B407	Nickel Iron Chromium Alloy Seamless Pipe
ASTM B514	Welded Nickel Iron Chromium Alloy Pipe
ASTM B515	Welded UNS N08120, N08800, N08810 and UNS N08811 Alloy Pipe
ASTM B751	General Requirements for Nickel and Nickel Alloy Welded Pipe
ASTM B775	General Requirements for Nickel and Nickel Alloy Welded Pipe
ASTM B829	General Requirements for Nickel and Nickel Alloy Seamless Pipe

Value Added services:

Hardness Test
Flattening Test
Pitting Resistance Test
Chemical Analysis – Spectro Analysis
Micro and MacroTest
Flaring Test
Intergranular Corrosion (IGC) Test
Mechanical Testing Such as Tensile of Area
Positive Material Identification – PMI Testing

ASTM B407 UNS N08800 Pipe Stock

Stainless Steel S31254 1.4547 Square Pipe

SB 407 UNS N08811 Pipe Pressure Rating

Alloy 400 Pipe

Tube O.D. (in.)	Wall Thickness of Tube (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Inconel 800 Pipe Mechanical Properties

Incoloy Alloy 800/ 800H/ 800HT Pipe Mechanical Properties

Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Hardness
			Rockwell B (HR B) max	Brinell (HB) max
800-H-HT	Psi – 75,000 , MPa – 520	30	–	–

1.4876 Alloy 800 Pipe Yield Strength

Yield Strength 0.2% Proof (MPa) min
	Psi – 30,000 , MPa –205

800/ 800H/ 800HT Incoloy Alloy Pipes Chemical Composition

Grade		C	Mn	Si	Fe	S	Cr	Al-Ti	Ni
Incoloy 800 Pipe	min.	–	–	–	39.5	–	19.0	0.15	30.0
Incoloy 800 Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	0.60	35.0
Incoloy 800H Pipe	min.	0.05	–	–	39.5	–	19.0	0.15	30.0
Incoloy 800H Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	0.60	35.0
Incoloy 800HT Pipe	min.	0.06	–	–	39.5	–	19.0	0.85/0.25	30.0
Incoloy 800HT Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	1.20/0.60	35.0

Equivalent Grades for 800 / 800H / 800HT Incoloy Pipe

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800 Pipe	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H Pipe	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT Pipe	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T
